Plano - Convex Spherical Lens Plano-Concave Spherical Lens

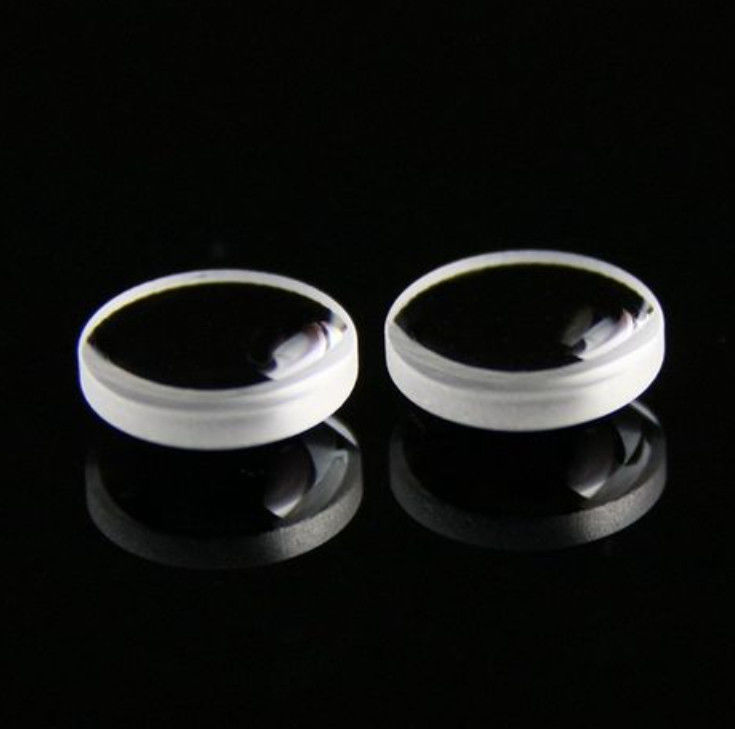

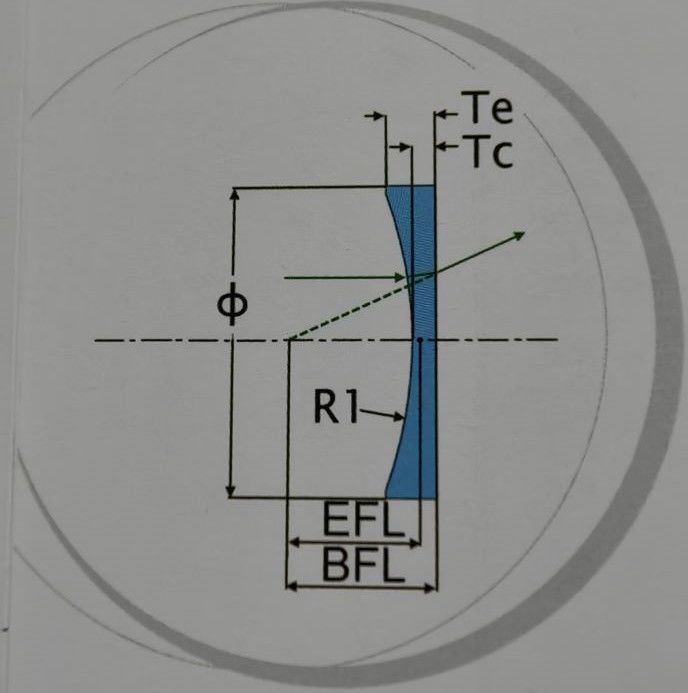

Plano-Concave Lenses bend parallel input rays so they divergefrom oneanother on the output side of the lens and hence have a negativefocal length. The spherical aberration of the Plano-Concave lenses is negativeand can be used to balance aberrations created by other lenses. Similar to thePlano-Convex lenses, the curvature surface usually faces the largest objectdistance or the infinite conjugate to minimize spherical aberration.
Application Fields of our products
Optical elements produced by our company are widely used inmilitary, aerospace, chemicalindustry, the public securityinvestigation, medicalinstrument, optical communicationenvironmental monitoring, photoelectric detection, cameraphotography,scanning laser instrument, the projection,anti-corrosion glass window, pressure-proof window,hightemperature windows, panel glass and other fields.
We can supply design,producing,coating.
cementing,assembly to customerrequirement.
| Specifications | Normal | High Precision | Mfg.Limit |
| Material : | H-K9L | H-K9L | H-K9L |
| Design Index: | 1.5168 | 1.5168 | 1.5168 |
| Diameter Tolerance | +0/-0.1mm | +0/-0.1mm | +0/-0.1mm |
| Thickness Tolerance : | +/-0.1mm | +/-0.1mm | +/-0.1mm |
| Focal Length Tolerance : | +/-2% | +/-2% | +/-2% |
| Centeration : | 3 arc min | 3 arc min | 3 arc min |
| Surface Quality: | 60-40 | 20-40 | 20-40 |
| Surface Figure: | 3 lambda | 2 lambda | 2 lambda |
| Surface lrregularity : | 1 lambda | 1/4 lambda | 1 /4lambda |
| Clear Aperture : | >80% | >90% | >95% |
| Bevel: | +/-0.2*45 degree | +/-0.2*45 degree | +/-0.2*45 degree |

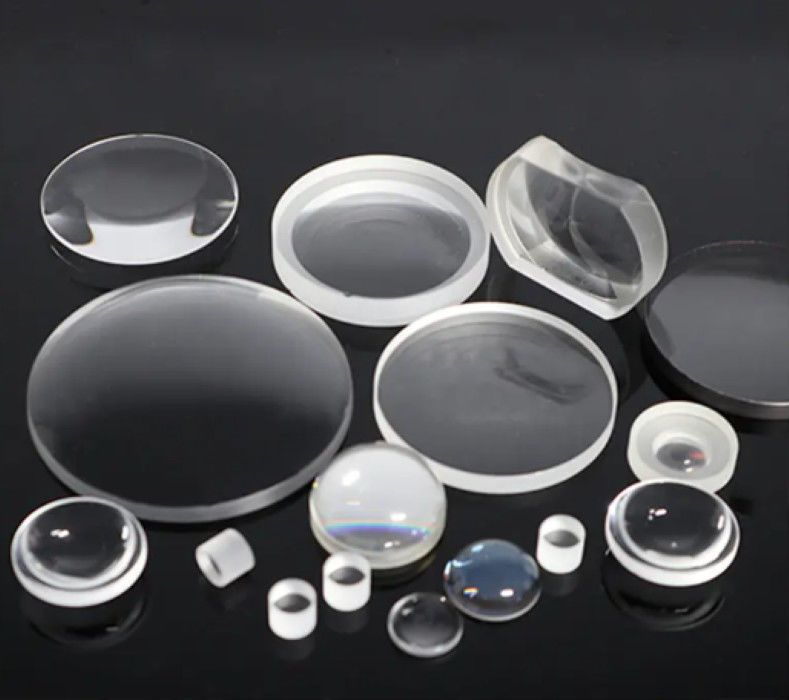

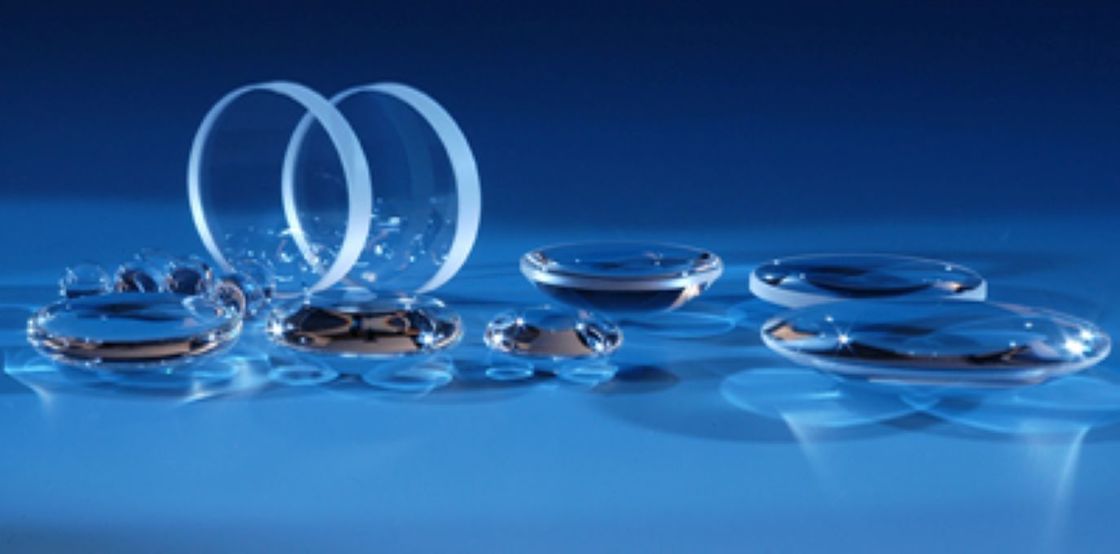

Optical Glass Lenses are widely used in a range of applications, including microscopes, cameras, telescopes, lasers, binoculars, optical instruments, and other optical equipment. The lenses are designed to provide superior optical performance, with excellent light transmittance, high resolution, and low distortion. They are also designed to be lightweight and durable, withstanding long-term use in harsh conditions. Optical Glass Lenses are designed for a variety of applications, including medical, industrial, scientific, and optical.
We provide customized optical glass lens service for a variety of shapes and designs, including round, square, rectangle, oval and polygonal. Our optical glasses are made of high quality optical glass, and they feature design index from 1.50 to 1.90, design irregularity of λ/4@632.8nm, and clear aperture of central 90% of the diameter.
Contact us to get your customized optical glass lens today!
We are dedicated to providing our customers with the highest quality products and services. Our technical support and service team is here to ensure that your Optical Glass Lenses are installed, used, and maintained properly. Our team is available to answer any questions you may have and provide you with the necessary support.
We offer the following services for Optical Glass Lenses:
If you need any help or have any questions about our Optical Glass Lenses, please do not hesitate to contact us. Our technical support and service team is always here to help.
