Place of Origin:
China
Brand Name:
Yu Feng
Model Number:
custom-made to meet your needs.
Contact Us

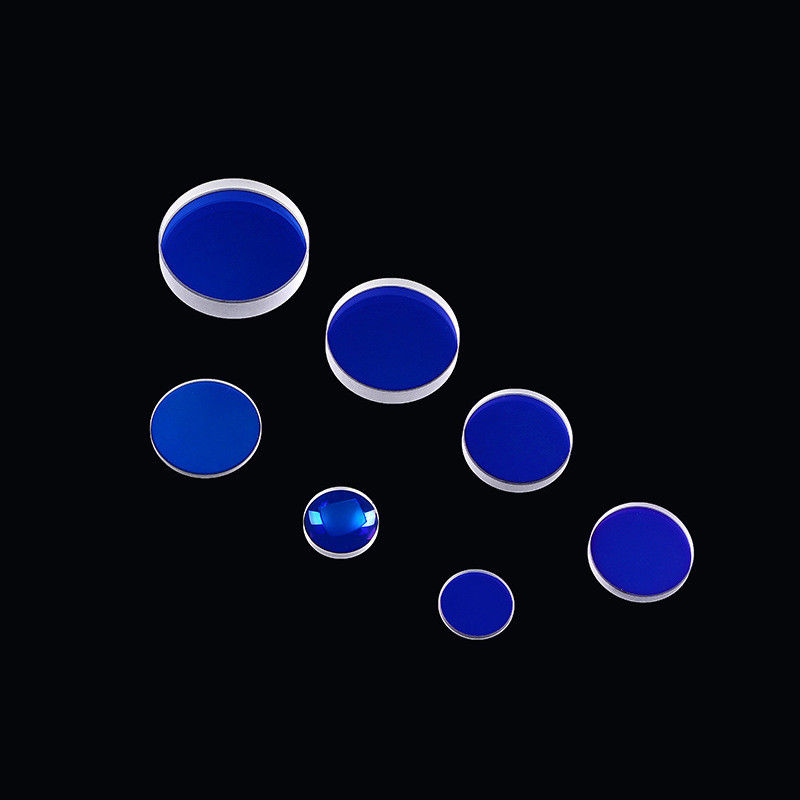

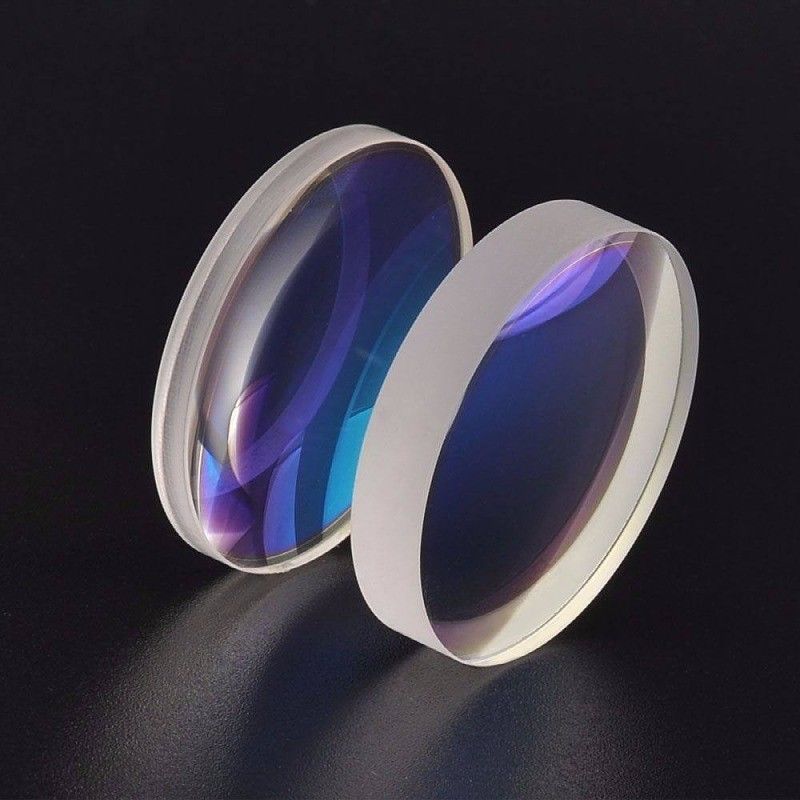

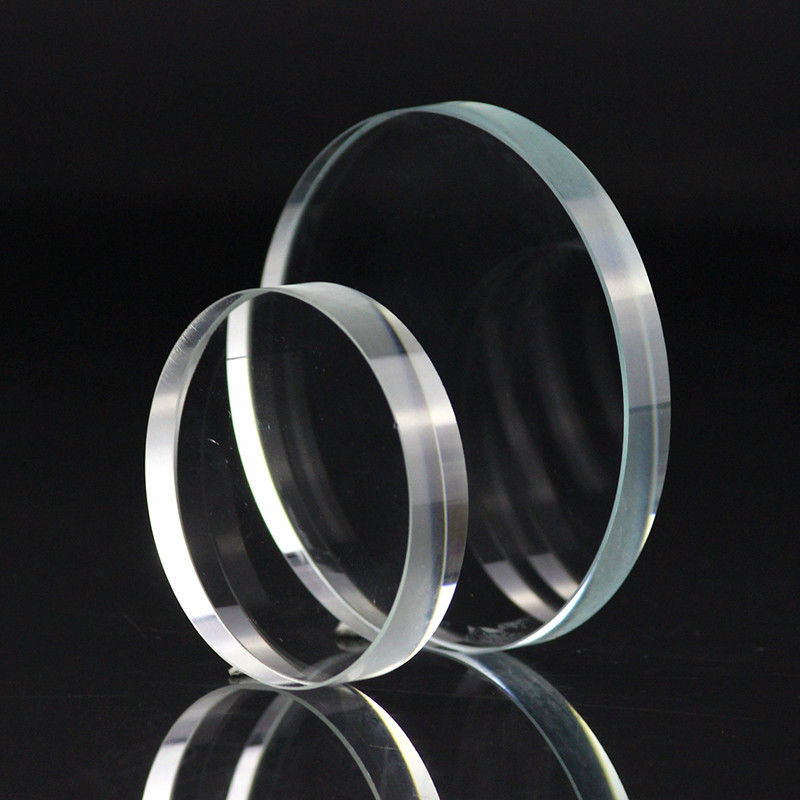

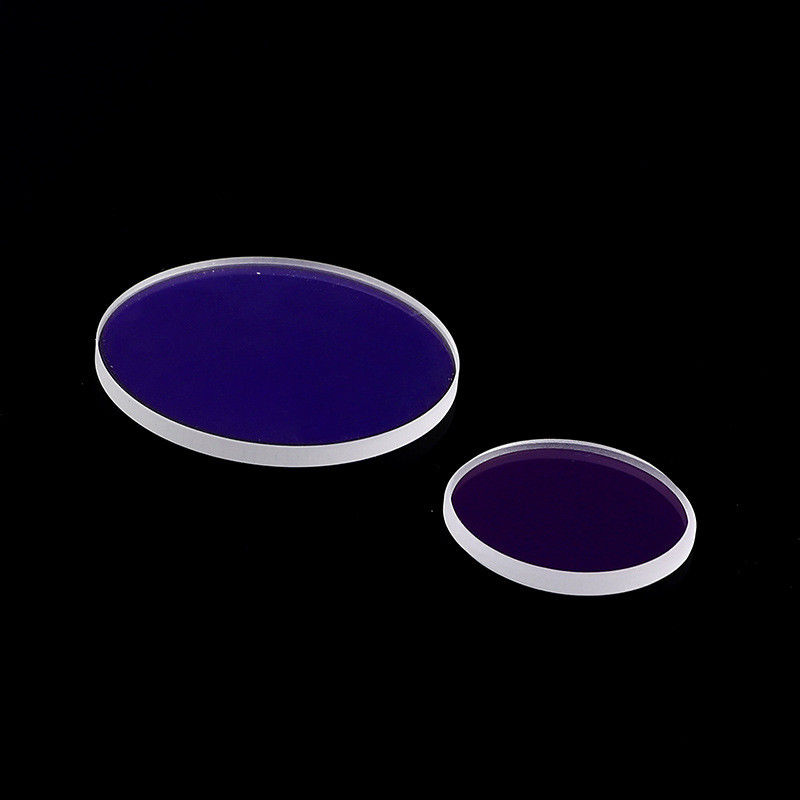

Quartz optical plate:
The guartz weiaht product produced by our company with the new process has been processed for many times, and has completely reached the requirements of optical grade.
Ouartz material has its unigue optical properties, it can pass through the far ultraviolet, is the best of all ultraviolet materals,. and can pass through the visible light can be near infrared spectrum.
Due to its high temperature resistance, extremely small thermal expansion coeficient, good chemical stability, buble, fringe,uniformity and birefringence, quatz glass can be comparable to ordinary optical glass, so it is an essental optical material for working in various harsh situations.
lt is an indispensable high guality material in the field of aerospace, wind tunnel experiment and military products.
In recent years, it has been used as a state key laboratory in the field of aeronautics and astronautics.
Our production and development of large aperture observation window is the general choice of users at home and abroad.
Our window precision: 0.02mm parallelism , plus or minue 0.02thickness tolerance surfac finish of 40/60, surface precision of lambda /10. And can be processed according to the needs of users.
SPECIFICATION
| Name | Quartz optical plate |
| Material | Quartz optical plate |
| Shape | Step,Round,Square,Wedge |
| Diameter | Φ5-260mm |
| Dimension Tolerance | ±0.1mm,±0.05mm(high precision) |
| Thickness | <0.1mm |
| Thickness Tolerance | ±0.1mm,±0.001mm(high precision) |
| Surface quality | 80/50-10/5 |
| Clear Aperture | >90% |
| Flatness | λ/2,λ/10(high precision ) |
| Parallelism | 1” -3’ |
| Bevel | <0.25mmX45° |
| Coating | Upon requirement |
Application Fields of our products
Optical elements produced by our company are widely used inmilitary, aerospace, chemicalindustry, the public securityinvestigation, medicalinstrument, optical communicationenvironmental monitoring, photoelectric detection, cameraphotography,scanning laser instrument, the projection,anti-corrosion glass window, pressure-proof window,hightemperature windows, panel glass and other fields.
Support and Services:
Optical Glass Lenses Technical Support and Services
At YuFeng, our Optical Glass Lenses are designed for precision and quality. We provide full technical support and services to ensure that your product is performing at its optimal level.
Technical Support
We offer support for all our Optical Glass Lenses. Our technical support team is available to answer any questions you may have about the installation, maintenance, and usage of our products. We provide detailed instructions and troubleshooting advice to help you get the most out of your product.
Product Warranty
All our Optical Glass Lenses are covered by a 1-year limited warranty. During the warranty period, if any product fails due to a manufacturing defect, we will replace it free of charge. We also offer extended warranties for an additional fee.
Customization Services
We offer customization services to ensure that your Optical Glass Lenses meet your exact specifications. Our engineers can design and create custom lenses that are tailored to your needs.
We can supply design,producing,coating.
cementing,assembly to customerrequirement.
